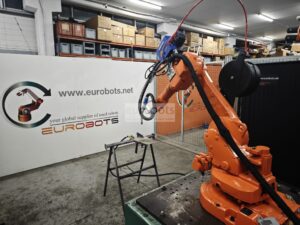

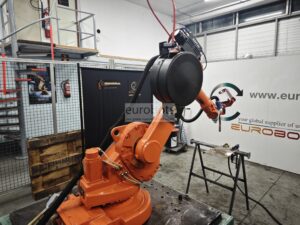

Compact ABB IRB1600 Arc Welding Cell with Aotai 500 A Power Source

This ABB welding system is built around a high-performance compact industrial robot paired with a 500 A synergic power source, ideal for MIG/MAG welding of carbon steel and other alloys.

System Components

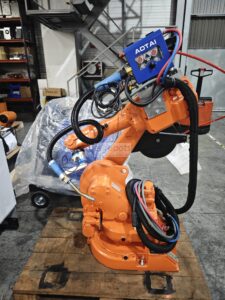

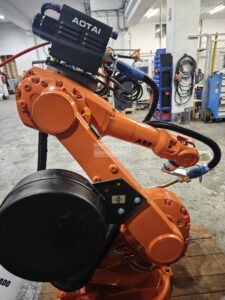

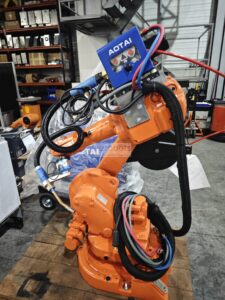

• 1 × ABB IRB1600 — 1450 mm reach, 6-axis industrial robot with IRC5 M2004 controller

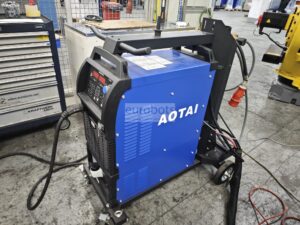

• 1 × Aotai AMIG 500PR Synergic — 500 A power source for carbon steel and other alloys
• 1 × ABICOR BINZEL torch cleaning station

Robot Highlights

The IRB 1600 is a compact 6-axis industrial robot suitable for arc welding, machine tending, material handling, cutting, dispensing, assembly, palletizing, packaging, measuring, die casting, injection moulding and the handling of small parts up to 10 kg.

Up to 50% shorter cycle times in material handling, machine tending and process applications, thanks to ABB’s patented second-generation QuickMove motion control combined with strong motors and low-friction spur gears.

QuickMove and TrueMove eliminate unnecessary moves, reducing power consumption to 0.58 kW at maximum speed and even less at lower speeds. The airborne noise level remains below 70 dB(A), supporting a healthier sound environment for operators.

Key Specifications

• Robot payload: 10 kg
• Maximum reach: 1450 mm
• Repeatability: 0.02 mm
• Axes: 6

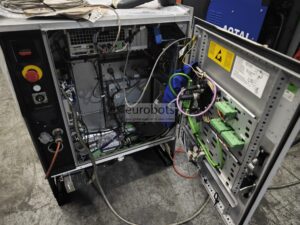

• Controller: ABB IRC5 M2004
• Welding power source: Aotai AMIG 500PR — 500 A synergic
• Process: MIG / MAG
• Suitable for: carbon steel and other alloys
• Torch maintenance: ABICOR BINZEL torch cleaning station

Why this cell?

A ready-to-deploy MIG/MAG welding solution that combines ABB’s compact and reliable IRB1600 industrial robot with a high-current Aotai synergic power source — suitable for high-throughput welding of carbon-steel components.
